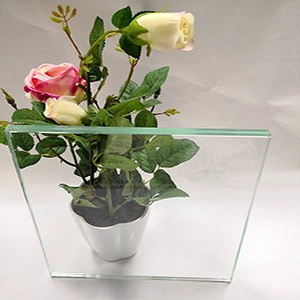

Free sample ultra clear PVB tempered laminated glass,toughened laminated glass sheets, 5+5+1.52mm ultra clear tempered laminated glass.Free sample ultra clear PVB tempered laminated glass,toughened laminated glass sheets, 5+5+1.52mm ultra clear tempered laminated glass.

Free sample ultra clear PVB tempered laminated glass,toughened laminated glass sheets, 5+5+1.52mm ultra clear tempered laminated glass.

  • Glass name:11.52mm ultra clear tempered laminated glass
  • Glass type:tempered laminated glass
  • Max Size: 3300*1300mm, Any size customized
  • Single glass thickness: 2-19mm
  • Glass color: clear, ultra clear, grey, green, blue, bronze
  • PVB:1.52mm
  • PVB color: red, white, yellow, any pantone color
  • Application :windows, doors, skylights, canopies, facades, curtain walls, etc

Free sample ultra clear PVB tempered laminated glass,toughened laminated glass sheets, 5+5+1.52mm ultra clear tempered laminated glass.


11.52mm ultra clear tempered laminated glass is produced by high temperature and high pressure to stick one or more interlayers of PVB between two or more pieces of glass, A wide variety of interlayers,thickness,and color options are available in(pvb/sgp/eva).

PVB laminated glass available in all glass type,such as clear, tinted, reflective, low-e, ceramic frit,silk-screened, pattern glass,tempered glass,art glass and so on.The features of PVB film is high transparency,low temperature resistance,impact resistance, Anti-UV.But PVB film adapt application in common curtain wall glass.it’s easy to tackless and damp if you have been used to for long time.

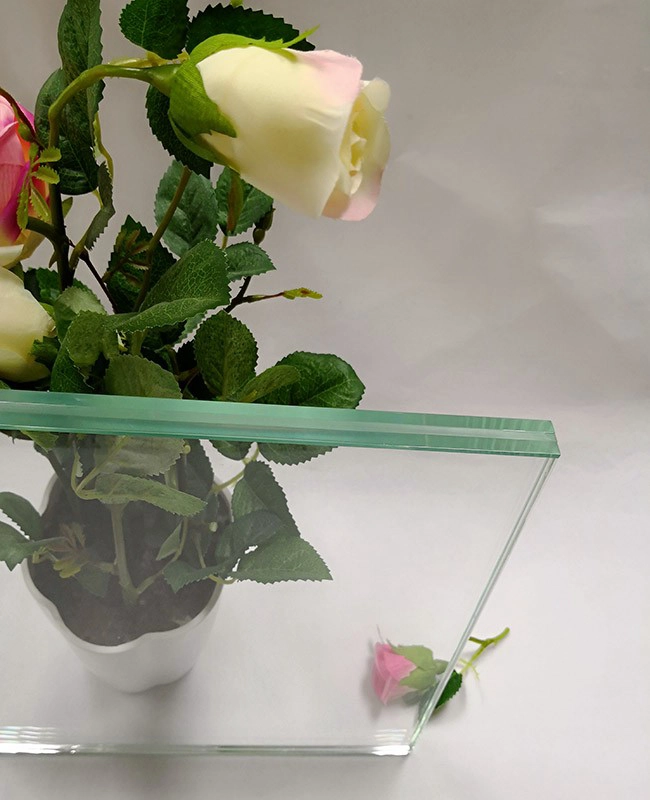

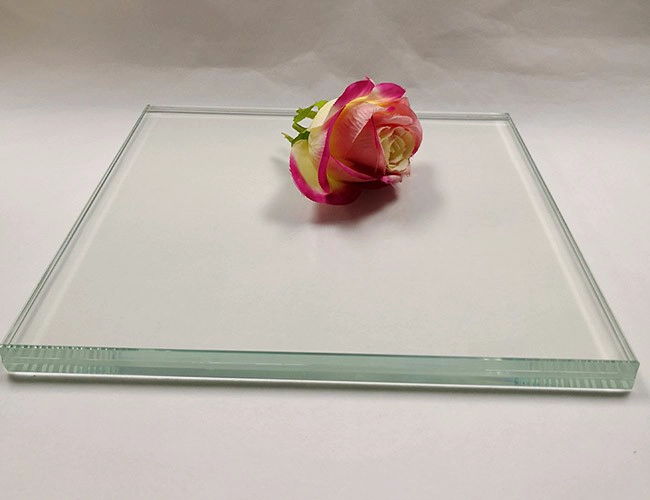

The sample of 5+5+1.52mm pvb ultra clear tempered laminated glass

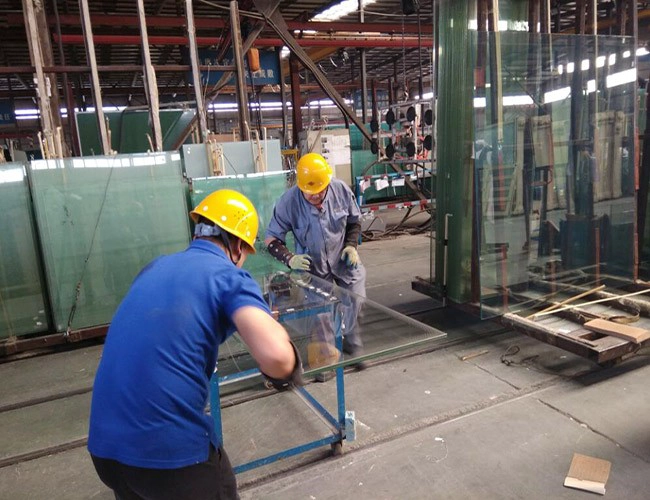

The processing of pvb tempered laminated glass

Cutting procedure---grinding edges---tempered glass heat strengthed--heat soak testing---laminated glass--- autoclave( the processing can eliminate small bubble that to make sure the pvb interlayers together strength bonding with two glasses.


11.52mm ultra clear tempered laminated glass features:

1)Safety and strength
When laminated glass breaks, it stays in shape, keep glass integrity. The glass fragments will not splash and harm the people around. the impact strength is 3 to 5 times higher than ordinary float glass for the same thickness

2) Typhoon & Earthquake Resistant
When impact or force occurs, glass stays and will not break into pieces instantly.

3 )Anti-bullet Glass
using multi-laminated technology to ensure strong impact resistance to gun and violence. So far, our Anti-bullet Glass have been installed more than 1,000 banks in the south of China.

4) Anti-UV
PVB carries additive for filtering UV penetration. It will help to better protect property, furniture and valuable antique.

5) Sound Protection
PVB is able to absorb sound wave, subsequently create a quiet and tranquil environment.

Specification
Glass name:11.52mm ultra clear tempered laminated glass
Glass type:tempered laminated glass
Max Size: 3300*1300mm, Any size customized
Single glass thickness: 2-19mm
Glass color: clear, ultra clear, grey, green, blue, bronze
PVB:1.52mm
PVB color: red, white, yellow, any pantone color
Application :windows, doors, skylights, canopies, facades, curtain walls, etc

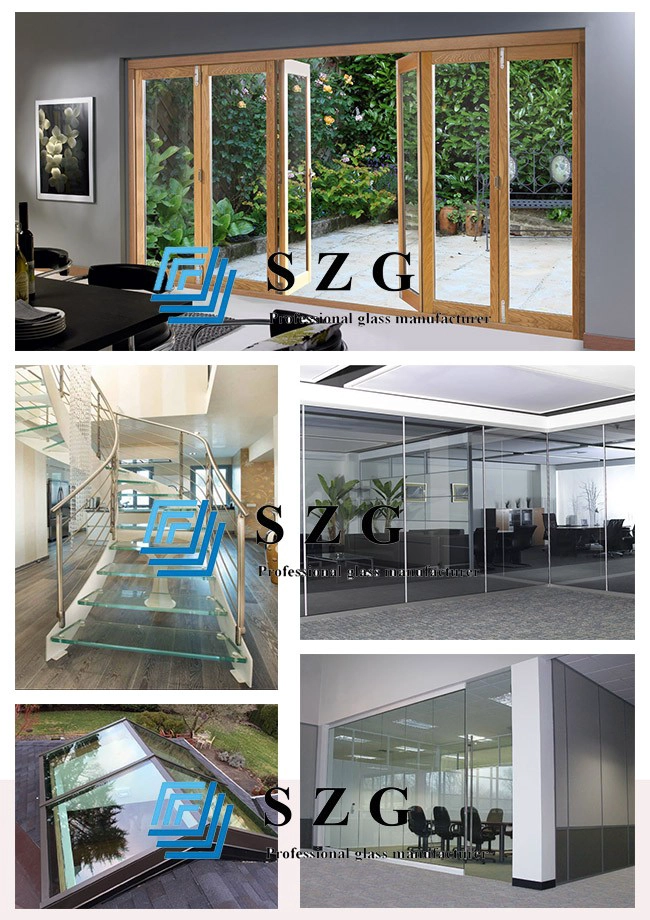

Application:

PVB ultra clear tempered laminated glass can be glass doors, curtain wall of building, indoor partition, fence,door and window of building, stairs appliance etc.


Product line

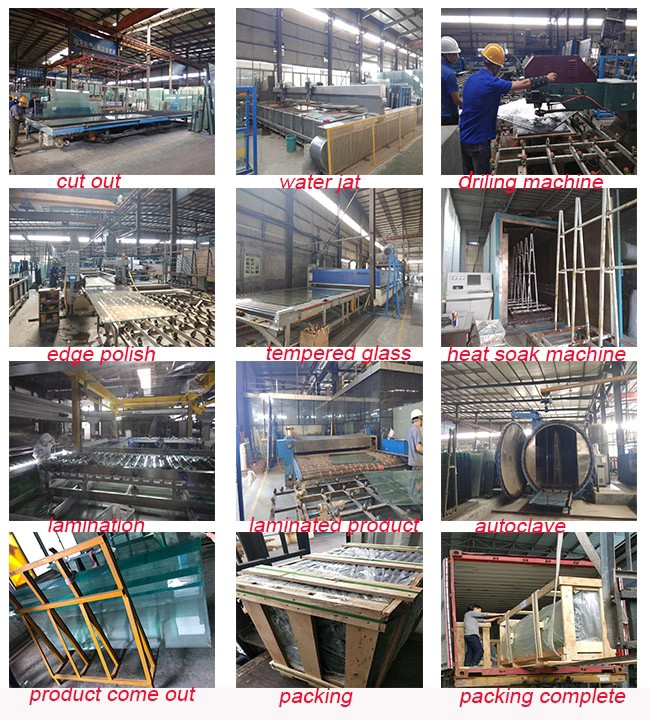

The processing of tempered laminated glass
