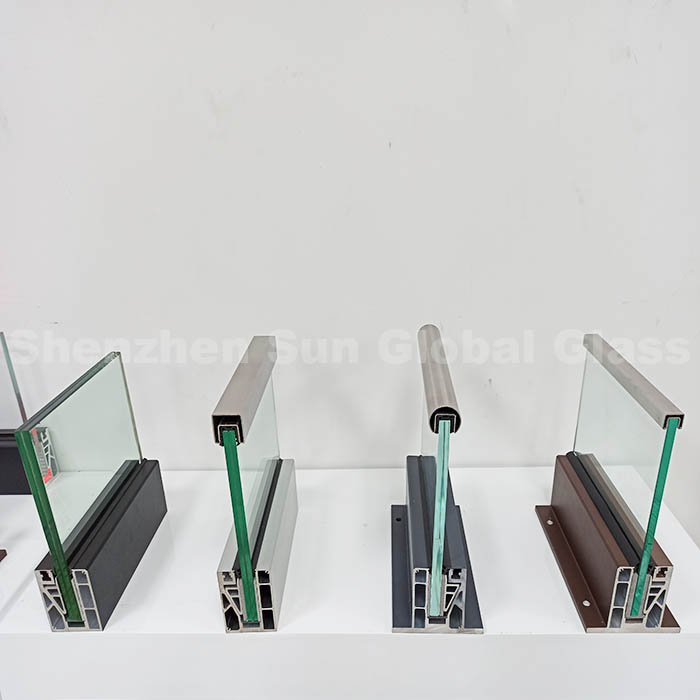

12mm tempered glass railing system, aluminium u channel glass railing, 1/2” clear toughened glass balustrade handrail system12mm tempered glass railing system, aluminium u channel glass railing, 1/2” clear toughened glass balustrade handrail system

12mm tempered glass railing system, aluminium u channel glass railing, 1/2” clear toughened glass balustrade handrail system

  • Product: glass railing system
  • Glass type: tempered glass, toughened glass
  • Glass thickness: 12mm
  • Glass size: custom size
  • Hardware: aluminium u channel
  • Hardware color: sliver, brown, black
  • Applications: stairs railing, balcony railing, deck railing, pool fence etc.

Specification:


Item

Material

Size (mm)

Finish

Glass Panel

Tempered Glass

12mm tempered clear glass, polished edges

Clear/Low Iron/Frosted/ Tinted/Printed

U channel

Aluminum

Suit for Glass 12-25mm

Anodized/Powder Coating

Top Handrail

304s.s

Square and round handrail tube, suit for Glass 6-22mm

Brushed/Polished

Handrail Connector

90 degree /180 degree / Flexible handrail connector

Handrail Accessories

304s.s standard accessories(Including End cap, wall flange and handrail connectors)

Rubber+panel grip

/

Rubber +grip panel

/

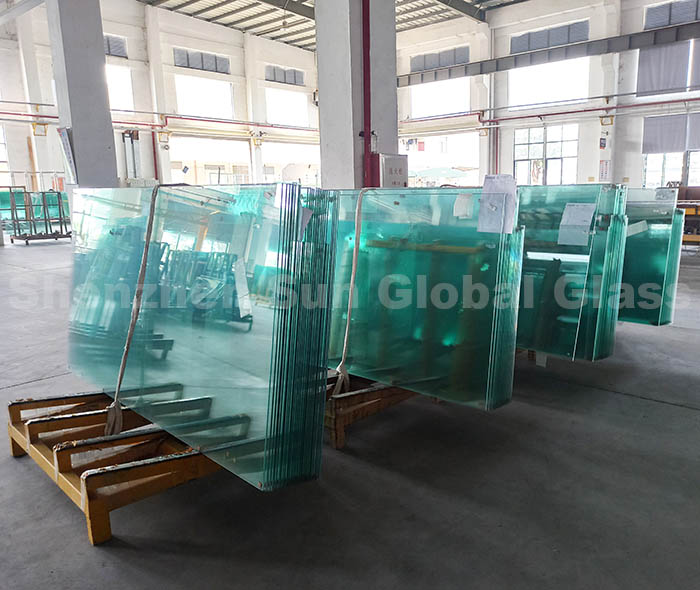

Glass for Railing



12mm tempered glass is kind of safety glass, made by tempering, a process in which 12mm float glass is heated up to a temperature of around 680°C for some time followed by abrupt cooling using jets of cold air. As a result of this process, the outside of the glass is forced into compression while the inside remains free to float for some time (creating tension on the inside). The higher the thermal expansion of the glass and the lower its thermal conductivity, the higher will be the level of residue stresses, and as a result of this, the stronger will be the resulting glass.


SZG 12mm tempered glass for aluminium u channel railing







Hardware for Railing


SZG 12mm tempered glass aluminium u channel railing

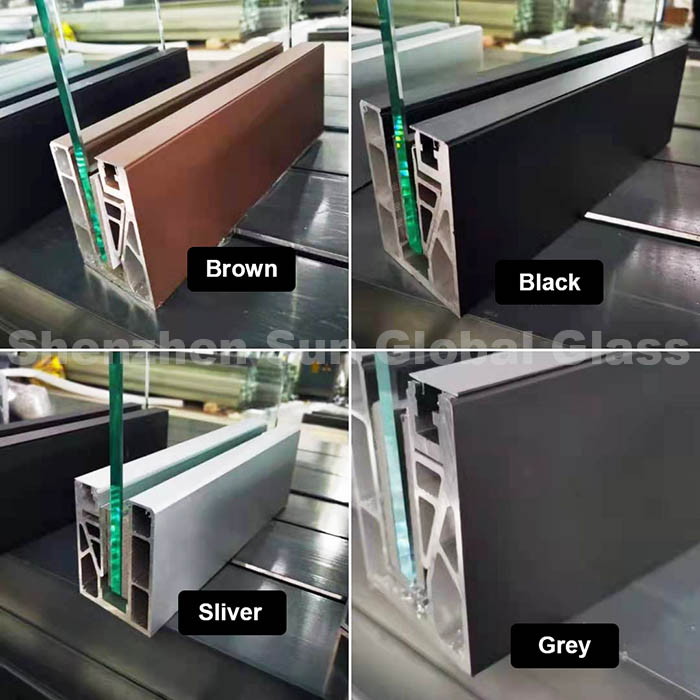

Color of Aluminium U Channel


SZG railing aluminium u channel color

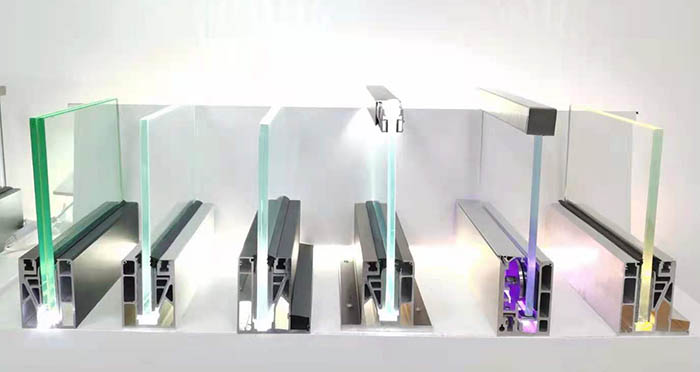

Aluminium U Channel with Led Light


SZG aluminium u channel railing with led light

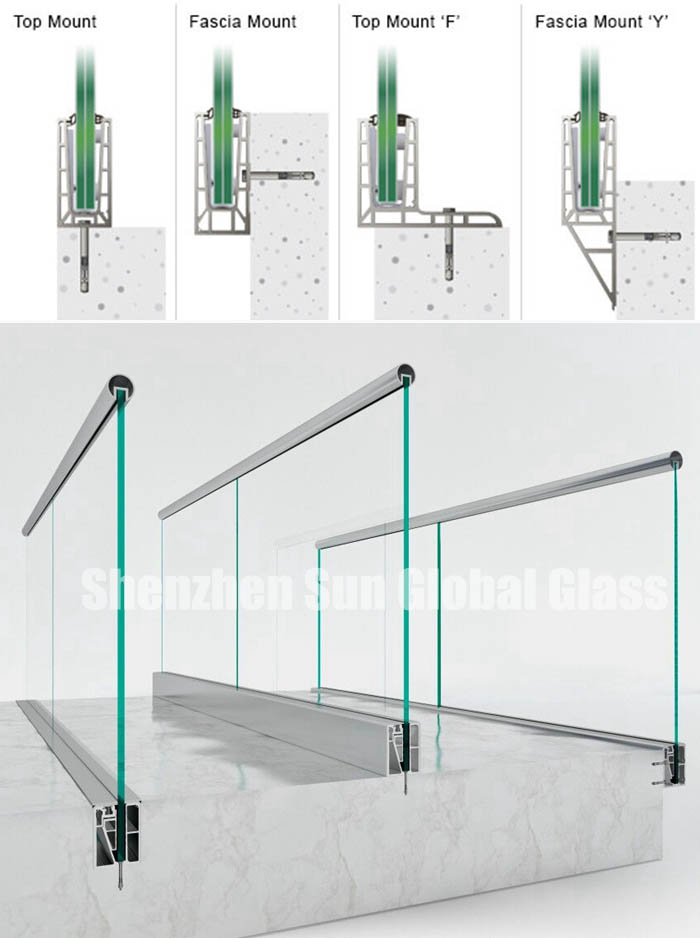

Install Positions


SZG railing aluminium u channel install positions

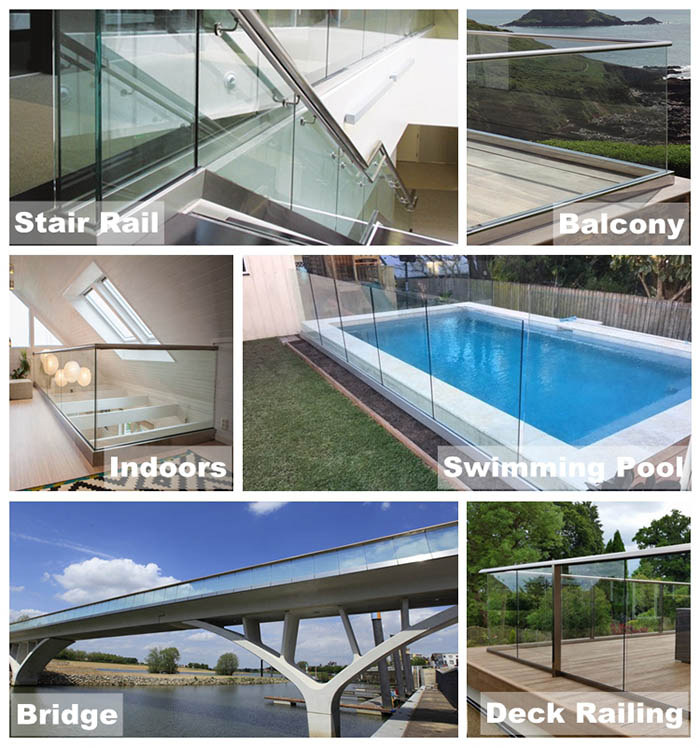

Applications


Stair handrail

Balcony railing

Deck railing

Pool fence


SZG railing aluminium u channel applications
