5+5mm laminated glass partition wall, aluminium u channel glass office partition, tempered laminated glass living room divider wall5+5mm laminated glass partition wall, aluminium u channel glass office partition, tempered laminated glass living room divider wall5+5mm laminated glass partition wall, aluminium u channel glass office partition, tempered laminated glass living room divider wall

5+5mm laminated glass partition wall, aluminium u channel glass office partition, tempered laminated glass living room divider wall

  • Product: glass partition wall
  • Glass type: tempered laminated glass
  • Glass thickness: 5+5mm
  • Glass color: clear, tinted, custom printed colors
  • Aluminum: satin finish or powder coated
  • Aluminum frame color: sliver, gray, black
  • Application: office, bedroom, living room, bathroom

Aluminium U Channel Framed Laminated Glass Partition Wall



Office glass partitions have become an established trend in the design and redevelopment of offices. This statement applies not only to large spacious business centers. Very often glass partitions can be found in small offices of private companies. There are some benefits of glass partition wall as belows:



First, the main and obvious advantage of glass partitions is their perfect and unsurpassed visual appearance. No other design that performs the same function can provide such a refined look. Glass partitions do not just zone the space and adjust the location of working places, they literally decorate the office space, add light and a sense of transparency.



Second, glass partitions are in great demand due to an ambience they establish. Glass, in contrast to the dense opaque structures of other materials, does not create the impression of closed dismal space. Sunlight easily penetrates to the workplace of every employee. It is much more pleasant and easier to work in the airy and breathing space.



Third, take into account the environmental friendliness of the material from which the office partitions are made. Glass is free of harmful fumes, unpleasant odors and other negative factors. Cleanliness and safety, durability and reliability are some of the main advantages of glass partitions for the office.



Fourth, one should not underestimate the mobility, compactness and possibility of rearranging the partitions at any time. In addition, these structures provide an opportunity to plan the location of the workplaces of the office staff, as the glass takes any necessary dimensions. If the glass partition in a particular place is unnecessary, it can be removed completely or installed in a new place in case size and dimensions of the glass and the opening allow it.



Finally, and perhaps the most significant advantage of office glass partitions is their durability and complete safety. Such structures are made from safe tempered laminated glass, which is very difficult and almost impossible to break accidentally.


SZG Aluminium U Channel Framed Laminated Glass Partition Wall


SZG Aluminium U Channel Framed Laminated Glass Partition Wall

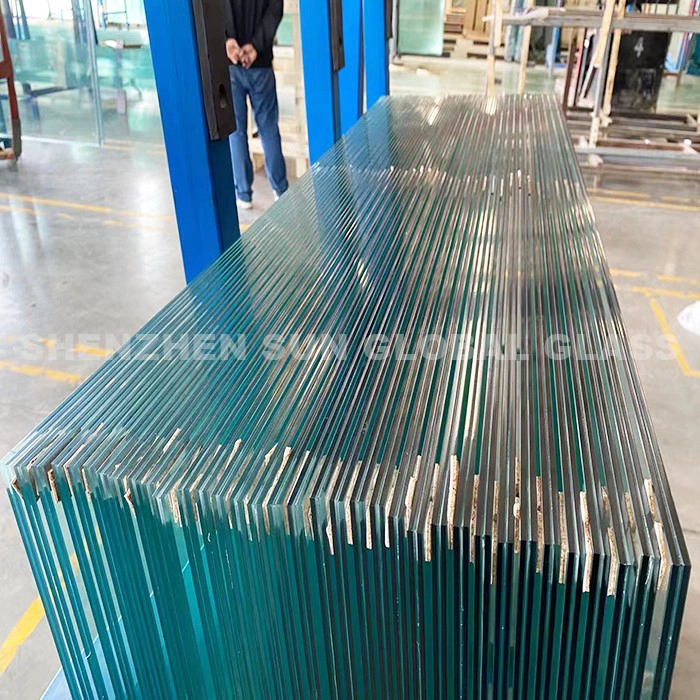

Laminated Glass for Partition Wall



5+5mm laminated glass  is a special type of safety or security glass that holds together in case of accidents. It is simply made by sandwiching layers of polyvinyl Butyral (PVB) or structural interlayer material in between two or more glass layers. The layers are usually bonded permanently using both mechanical and chemical bonds. High temperature and pressure are applied in the process to eliminate air bubbles from the glass layers forming a tough seal. The glass is thus strengthened enough to resist stress. In case of breakage, the sharp pieces which cause fatal injuries are held together forming ‘web like’ patterns. This qualifies laminated glass to be a safety glass. Typical PVB laminated glass has a thickness of at least 0.38mm but multiple layers of 0.38 may be laminated to make even stronger glass panels, for partition wall glass, PVB film thick is normally 1.52mm.


SZG Aluminium U Channel Framed Laminated Glass Partition Wall

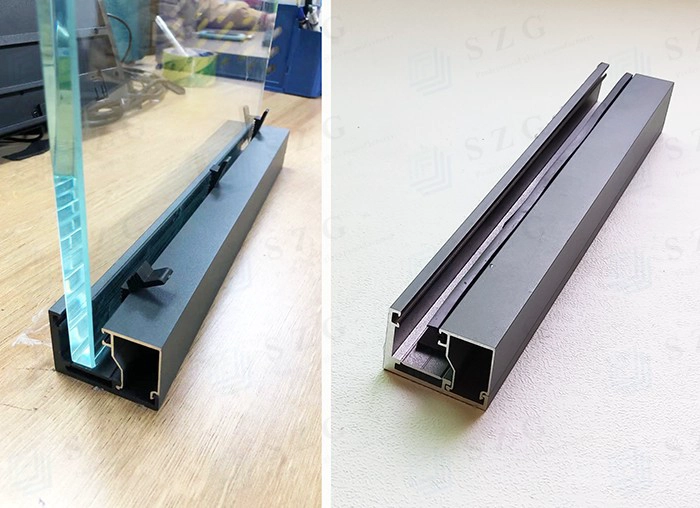

Aluminium Frame for Partition Wall


SZG Aluminium U Channel Framed Laminated Glass Partition Wall

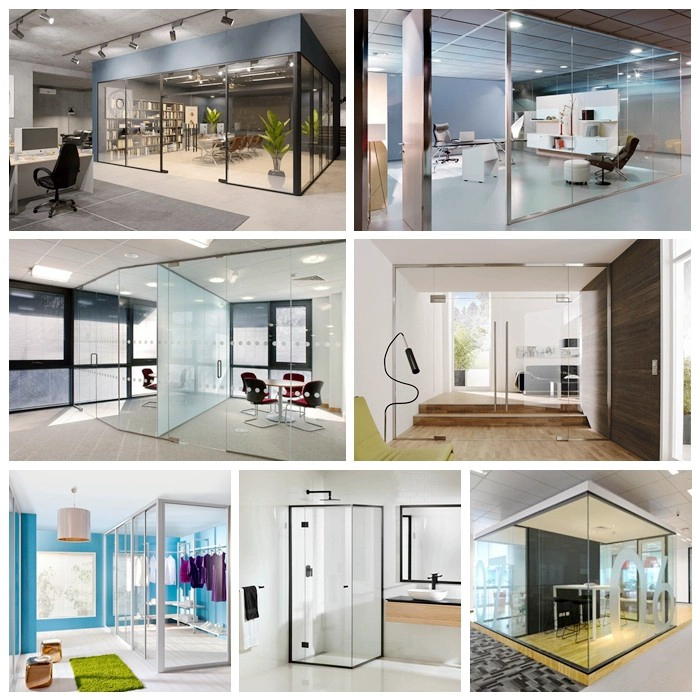

Application



Office partition

Bedroom

Living room

Bathroom



 SZG Aluminium U Channel Framed Laminated Glass Partition Wall
