8mm+15A+8mm insulated glass facade,31mm insulated glass curtain wall,8mm+8mm double glazed exterior wall glass8mm+15A+8mm insulated glass facade,31mm insulated glass curtain wall,8mm+8mm double glazed exterior wall glass8mm+15A+8mm insulated glass facade,31mm insulated glass curtain wall,8mm+8mm double glazed exterior wall glass

8mm+15A+8mm insulated glass facade,31mm insulated glass curtain wall,8mm+8mm double glazed exterior wall glass

  • Other name: curtain wall glass
  • Types of glass for facade glass:laminated glass and insulated glass
  • Styles of facade glass: visible facade glass and invisible facade glass
  • Shape: flat facade glass, curved facade glass
  • Glass Thickness: 6mm +6mm, 8mm+8mm, 10mm+10mm etc
  • Package: strong exportation wood crates
  • Delivery: 10-15 days after deposit payment received
  • Container: 20'GP, 40’GP etc

SZG 8mm+15A+8mm insulated glass facade - Light and beautiful architectural aesthetics & energy efficiency


Insulated glass curtain wall also called facade glass, refers to the support structure system can be relative to the main structure of a certain displacement capacity and do not share the role of the main structure of the building envelope or decorative structure. Facade glass is a beautiful and innovative method of building wall decoration and is a modern high-rise building of the era of significant features. The facade glass are made by insulated glass.



Types of glass use in curtain wall glass:


1. Laminated glass curtain wall

2. Insulated glass curtain wall



Styles of Facade glass:


1.Framed curtain wall glass / Visible facade glass
A frame curtain wall glass is a curtain wall glass in which the metal frame is exposed on the outer surface.
Framed curtain wall glass is the most traditional form, most widely used.

2.Hidden curtain wall glass / Invisible facade glass
Hidden frame curtain wall glass of the metal frame hidden in the back of the glass, outdoor invisible metal frame.
Hidden frame curtain wall glass structure is characterized by glass in the aluminum frame outside, with silicone sealant structure of the glass and aluminum frame bonding. Curtain wall load mainly by the sealant to bear.


Requirements for glass use in curtain wall glass:


1.Safety glass & more than 12mm: Facade glass should use safety glass, the thickness of the single glass panel should not be less than 6mm, full glass facade thickness should not be less than 12mm.

2.Double sealed: The insulated glass for the facade glass shall be double-sealed.

3.PVB thickness above 0.76mm: Facade of laminated glass should be used polyvinyl butyral (PVB) film dry synthesis of laminated glass. In Point-supported laminated glass facade, the laminated film (PVB) thickness can not less than 0.76mm.

4.Glass edges grinded or polished: All curtain wall glass shall be edge grinded or polished.


Functions of curtain wall glass:


Modern high-rise facade normally used by insulated glass, with the composition of low e glass/coated reflective glass and ordinary clear glass combination, the compartment filled with dry air or inert gas insulating glass.

1. Insulating glass with noise insulation, heat insulation, anti-frost, anti-moisture, proof wind pressure and other advantages.

2.It was measured that when the outdoor temperature was -10 °C, the temperature before the single-glazed window was -2°C, and the room temperature using insulating glass was 13°C. In the hot summer, double-insulated glass can block 90% of the solar radiation heat. The sun can still be through the glass curtain wall, but most of the body will not feel hot in the sun. The use of hollow glass curtain wall of the room can keep warm in winter and cool in summer, greatly improving the living environment.


Specifications:

Thickness: 18mm facade glass, 21mm facade glass, 22mm facade glass, 24mm facade glass, 25mm facade glass, 26mm facade glass, 27mm facade glass, 28mm facade glass, 29mm facade glass, 31mm facade glass, 32mm facade glass, 35mm facade glass etc

Glass composition: Reflective coated glass/ Low e glass + Clear tempered glass or customized based on clients’ needs.


Quality Control:

As the glass facade is used very common in modern building, to control the quality is very important. Sun Global Glass provide facade glass comply with following standards:

1. 31mm insulated glass curtain wall meet BS 6206 UK safety glass standard.

2. 31mm insulated glass curtain wall meet EN 12150 CE European safety glass standard.

3. 31mm insulated glass curtain wall meet Chinese Safety Glass Compulsory Certification (CCC)

4. 31mm insulated glass curtain wall meet China Quality Standard GB11944.


Product Details:

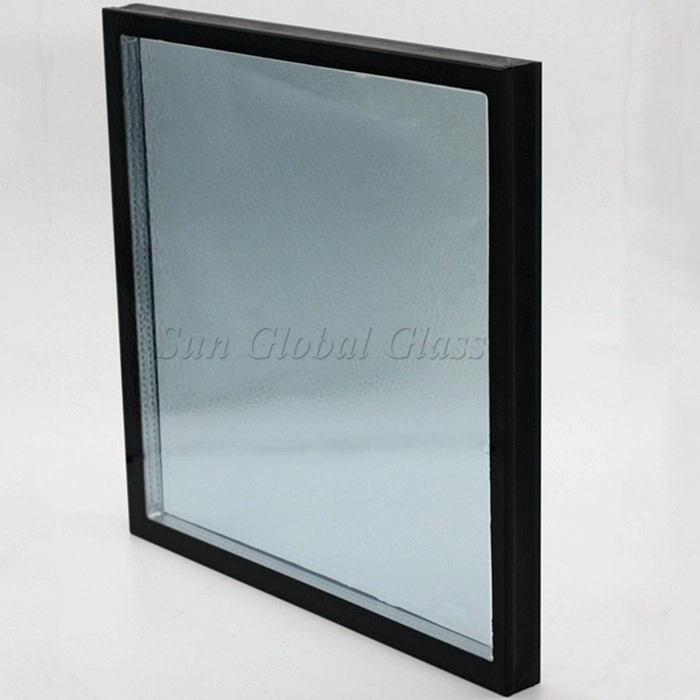

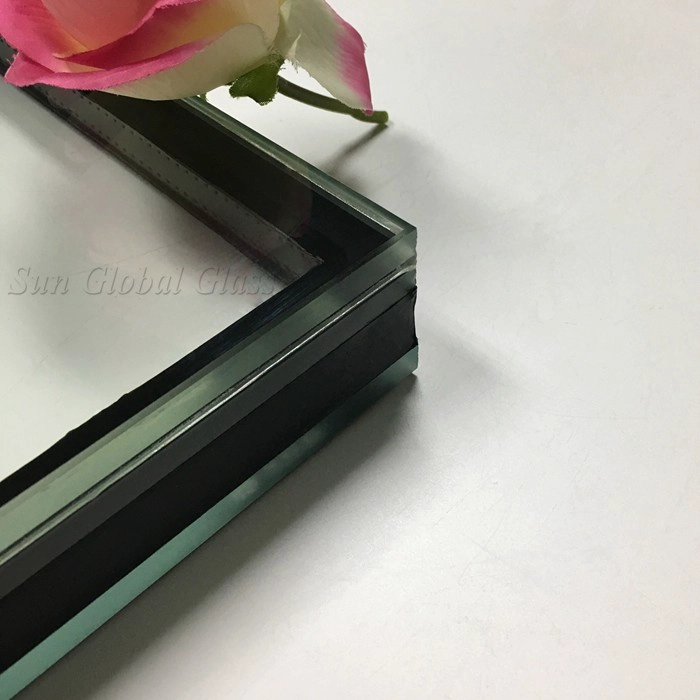

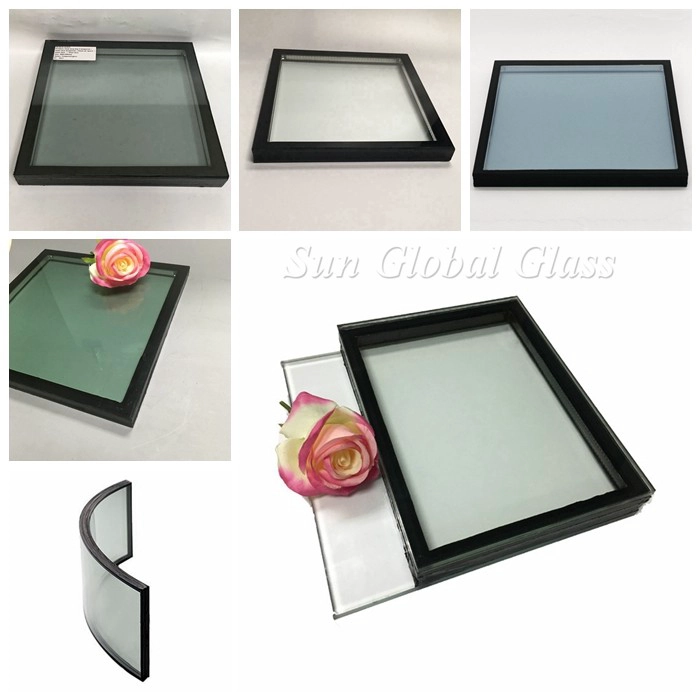

Product pictures of 8mm+8mm double glazed exterior wall glass:


31mm insulated glass curtain wall

8mm+8mm double glazed exterior wall glass

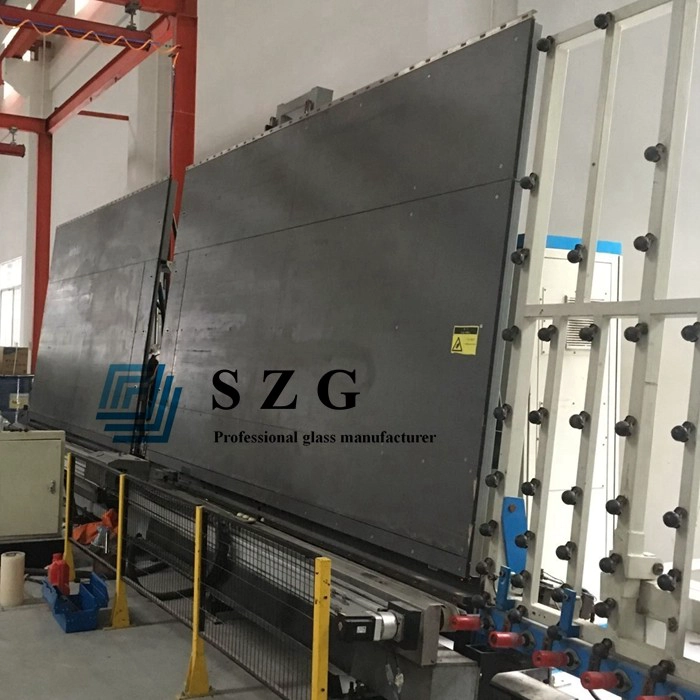

Production Line of facade glass:

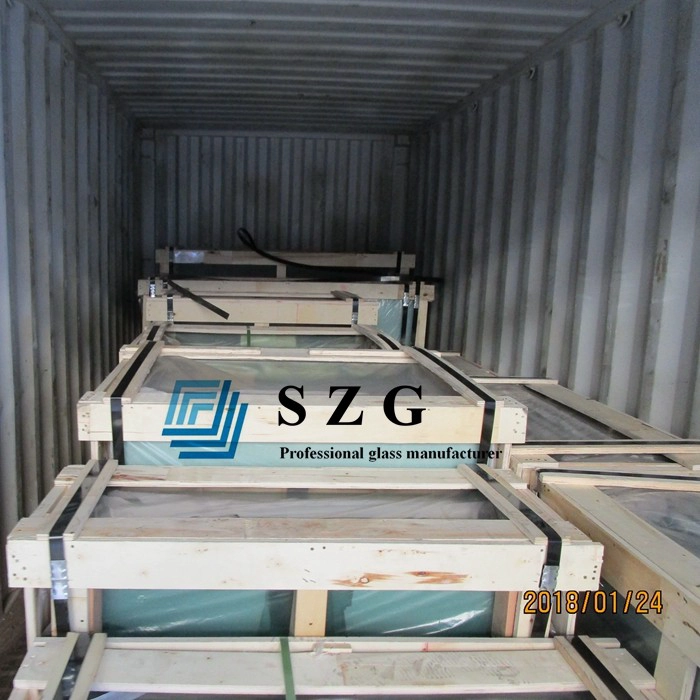

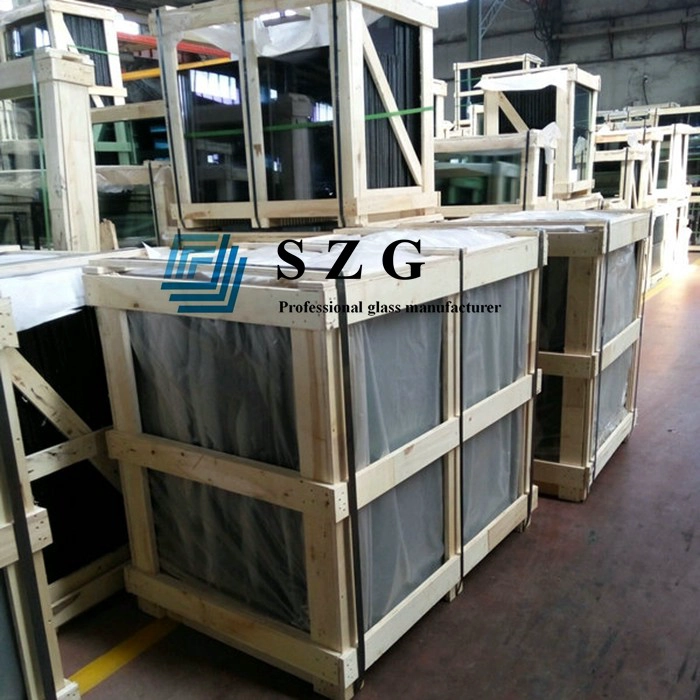

Package and Loading of facade glass:

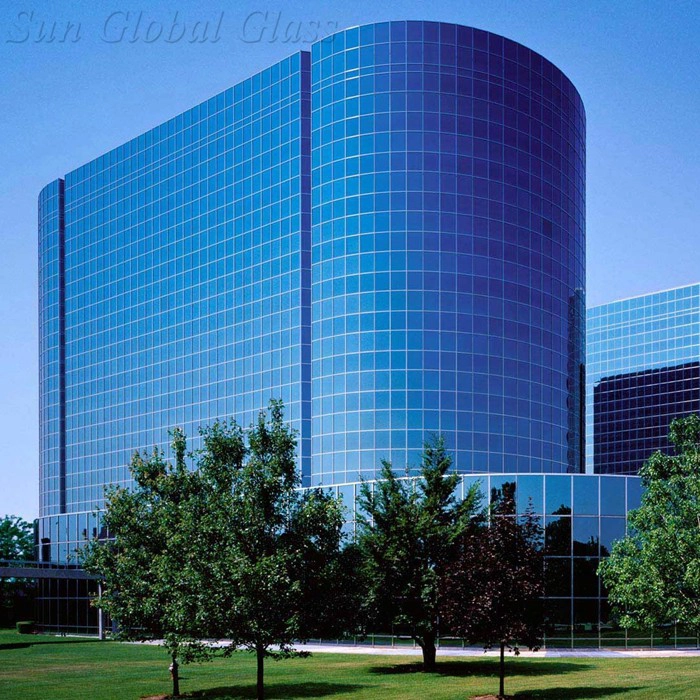

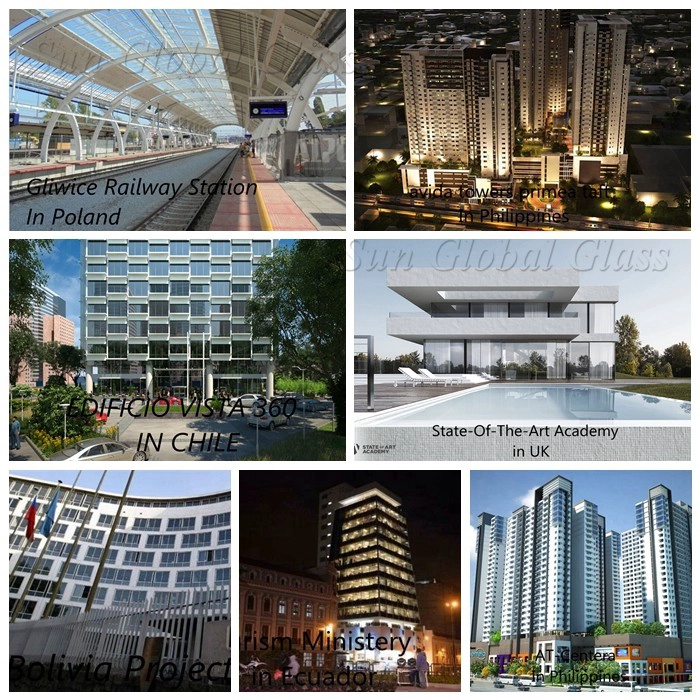

Our Projects of facade glass:


Our promise is that you receiving 31mm insulated glass curtain wall with high quality and safety condition from us.
