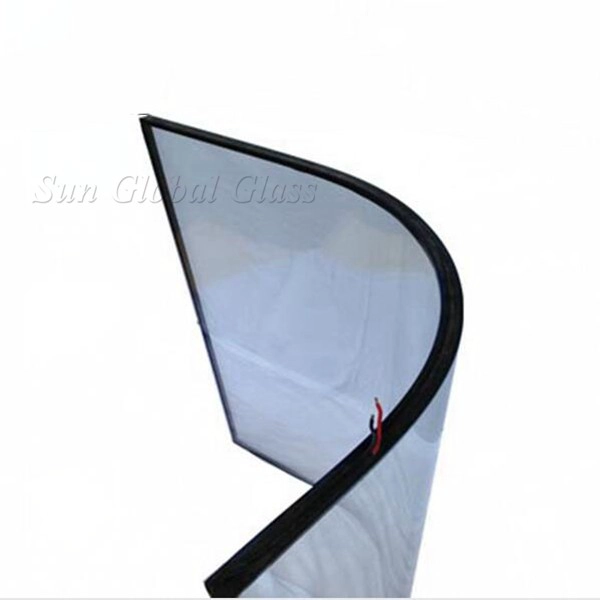

Curved Insulated Glass Curtain Wall, Curved Insulated Glass Windows, Curved Insulated Glass Units

Curved Insulated Glass Curtain Wall, Curved Insulated Glass Windows, Curved Insulated Glass Units

  • Other name: heat and sound resistant glass, double glazed glass units
  • Shape: curved shape
  • Composition: glass + air spacer + glass
  • Glass type: tempered glass, laminated glass, insulated glass
  • Sealing glue: butyl glue and sulfur glue
  • Spacer thickness: 6A 9A 12A 15A 20A
  • Package: exportation wooden crates
  • Delivery: 10-15 days
  • Container: 20'GP, 20'OT, 40'HQ

SGG Energy Saving Curved Insulated Glass Units, Air Spacer 6A, 9A, 12A, 15A, 20A


Curved Insulated Glass (IGU glass) is made by two panes of glass seperated by aluminium spacer, which filled by dry air or inert gas. Then sealed the glass and spacer by butyl glue, sulfur glue, or structual sealant. This seperating spacer reduced the outside temperatue transfer into the room, as well as sound insulation. The thicker spacer, the better function.


Specifications:

1.Glass type: clear glass, tinted glass, reflective glass, low e glass, tempered glass,   laminated glass etc.

2.Glass thickness: 5mm+5mm 6mm+6mm 8mm+8mm etc

3.Aluminum spacer thickness: 6A 9A 12A 15A 20A

4.Gas in air spacer: Air or argon gas

5.Glass color: Clear, ultra clear, bronze, blue, green, gray, etc

6.Max size: 2700x3700mm
   Min Size:180x350mm
   Custom sizes based on customers requirements

7.Insulated glass composition: Clear tempered glass + low e tempered glass/reflective tempered glass/tinted tempered glass etc


Features:

1. Solar energy saving function: insulated glass have a good function of heat saving.

2. Preventing radiation heat: Insulated glass can prevent radiation heat, reduce dizziness of sunset and sunlight.

3.Various colors and artistic performance; insulated glass can be produced by any types of colored glass and the colored insulated glass achieve artistic effect.

4.Keep indoor constant temperature and humidity: insulated glass can keep inside temperature constant in some degree.

5. Sun protection: insulated glass have a good function against sun shine and protect humans from sun irradiation.


Applications:

Reasonable structure and design to meet the standards of insulated glass, As  hollow glass have good insulation function(such as proof noise, security, proof fire). Insulating glass is widely used for buildings that have requirement for heating, air conditioning, noise or condensation protection and avoid from direct sunlight and special light radiation.
1.Residential window & doors
2.Office buildings curtain wall and facade


Quality Control:


Insulating glass is used for outer building decoration. Due to its optical properties, thermal conductivity, sound insulation coefficient, our Insulated glass Conforms to the following international standards of Europe, North American and China: ISO9001, CCC, CE, BS6206, EN12510, ANSI Z97.


Product Details:

Product pictures of Curved Insulated Glass Curtain Wall:

Curved Insulated Glass Curtain Wall


Low e insulated glass performance:



Production Line:



Package and Loading:





Our Projects:




Our promise is that you receiving Curved Insulated Glass Curtain Wall with high quality and safety condition from us.
