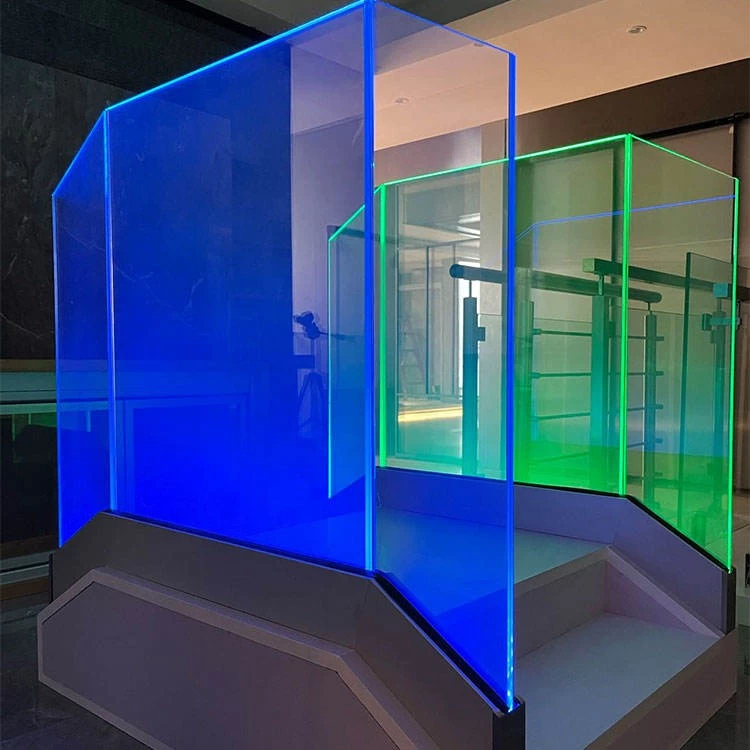

LED light aluminium U channel glass railing balcony balustrade fence guardrails parapet
- Aluminium U channel color: original silver, black, grey, gold, custom color
- Glass type: tempered glass and laminated glass
- Glass thickness: 10mm 12mm 16mm 20mm, customized thickness
- Led color: green, blue, red, any customized color
- Production time: 10-15 working days after order is confirmed
- Packing: Strong export plywood crates to make sure safety delivery
Shenzhen Sun Global Glass supply complete sets of LED light aluminium U channel glass railings, glass balcony, glass fences, glass balustrades, glass guardrails, glass parapets, we could do all customization for you, you just need to send us your site layout, we could do the design and make the production drawings for you.
Specification:
Glass Type:
Tempered glass 10mm 12mm 3/8’’ 1/2’’
Tempered laminated glass 4+4mm 5+5mm 6+6mm 8+8mm, 10+10mm
Glass color: clear, grey, white, frosted, etc.
Led light color: green, blue, red, any customized color
Aluminium U channel color: original silver, black, grey, gold, custom color
Production time: 10-15 working days after order is confirmed
Packing: Strong export plywood crates to make sure safety delivery
FAQs
We strongly recommend 12mm to 21.52mm tempered or laminated tempered glass (such as 6+6mm or 8+8mm). Laminated glass is highly recommended for building handrails as it ensures maximum safety; even if the glass breaks, the fragments stick to the PVB/SGP interlayer, preventing fall hazards.
Yes, absolutely. Our integrated LED strip lights have an IP65 or IP67 waterproof rating, making them perfectly resistant to rain, humidity, and dust in outdoor environments like balconies and pool areas. The system runs on a safe low voltage (DC 12V or 24V), which requires a transformer to connect to your local grid.

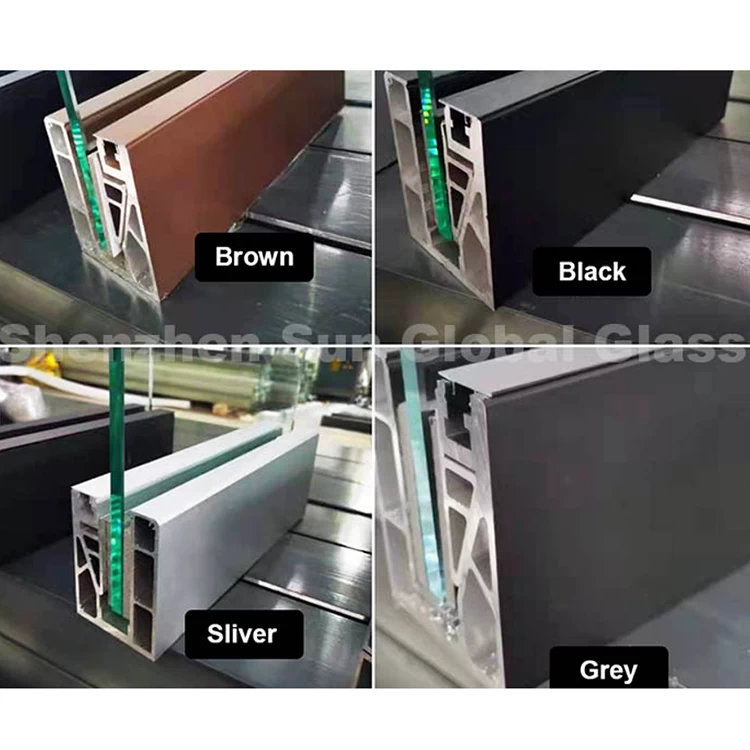

We offer a variety of architectural-grade surface treatments to match your design requirements:
Anodized (Satin/Silver, ideal for corrosion resistance)
Powder Coated (Available in any RAL color code)
PVDF Coating (For harsh coastal or high-UV environments)
Wood Grain Transfer
We primarily use a dry-glazing system utilizing specialized rubber wedges and gaskets. This eliminates the need for messy cement or liquid sealants during site installation. It significantly speeds up assembly, reduces labor costs, and allows for easy glass adjustment or replacement.
Yes, we provide full OEM/ODM customization services. Standard profiles are typically supplied in lengths of 3 meters or 5.8 meters (optimized for shipping containers), but we can pre-cut, CNC-drill, and manufacture custom angles (e.g., 90-degree corner joints) based on your architectural drawings.
As an experienced exporter, we prioritize secure packaging.
Glass: Packed in heavy-duty, fumigation-free plywood crates with protective paper or foam interleaving between each sheet.
Aluminum Profiles: Individually wrapped in EPE foam and packed in durable master cartons or wooden crates to prevent scratching and bending during sea transit.
Our standard MOQ for aluminum profiles is 50 meters, and for glass, it depends on the total square meters. The lead time is typically 20-30 days after deposit confirmation and technical drawing approval, depending on the order volume and customization requirements.
