laminated tempered clear glass 4+4mm painted #4 surface 50% pattern white color,9.52mm white color  laminated glass 50% pattern dots design,44.4 white dots printed laminated glasslaminated tempered clear glass 4+4mm painted #4 surface 50% pattern white color,9.52mm white color  laminated glass 50% pattern dots design,44.4 white dots printed laminated glasslaminated tempered clear glass 4+4mm painted #4 surface 50% pattern white color,9.52mm white color  laminated glass 50% pattern dots design,44.4 white dots printed laminated glass

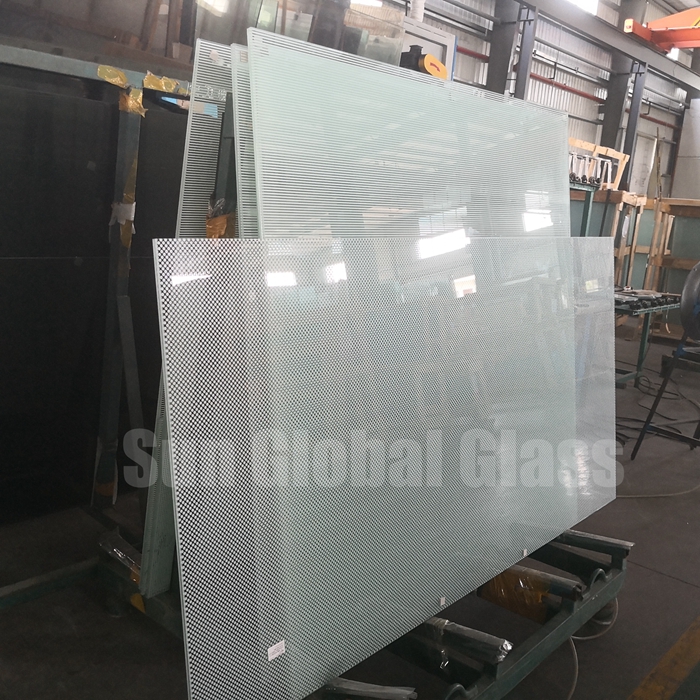

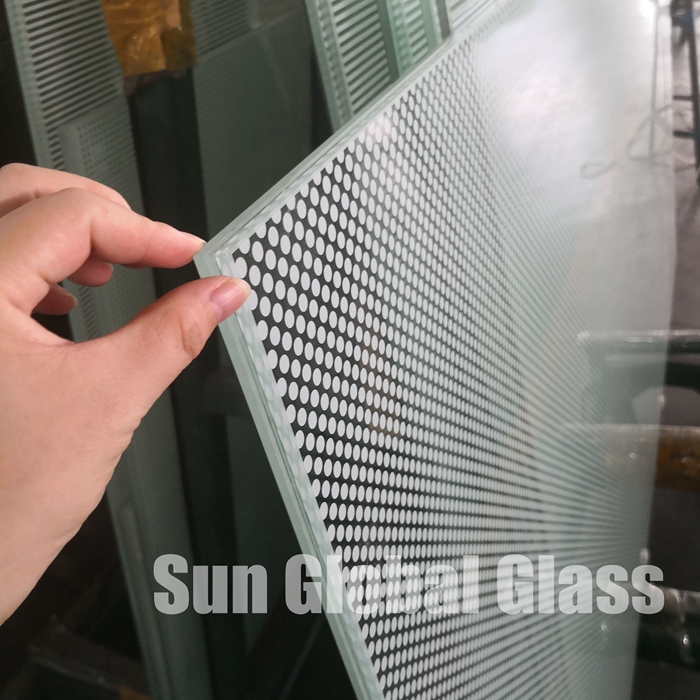

laminated tempered clear glass 4+4mm painted #4 surface 50% pattern white color,9.52mm white color laminated glass 50% pattern dots design,44.4 white dots printed laminated glass

  • Glass type: 4mm+1.52mm PVB+4mm laminated glass with dots printing
  • Glass color: clear glass, acid etched glass, printed glass, blue glass, green glass, gray glass, bronze glass, etc
  • Glass Thickness: 4mm+4mm to 19mm+19mm
  • PVB color: any color based on Pantone or RAL card
  • PVB Thickness: 0.76mm, 1.14mm, 1.52mm, 1.9mm etc
  • Glass size: Maximum 3300x12000mm

SZG 9.52mm laminated glass with 50% dots silk screen design- best processed glass manufacturers and factory in China



laminated tempered clear glass 4+4mm painted #4 surface 50% pattern white color, which is made of one layer of 4mm silk screen glass and one layer of 4mm tempered glass sandwish together, and the middle layer is 1.52mm PVB film. the glass is super strong and high protective against breakage after heating and high-pressure special process, due to the two layers of glass adhesion together. It’s a kind of safety glass use widely in modern building construction.

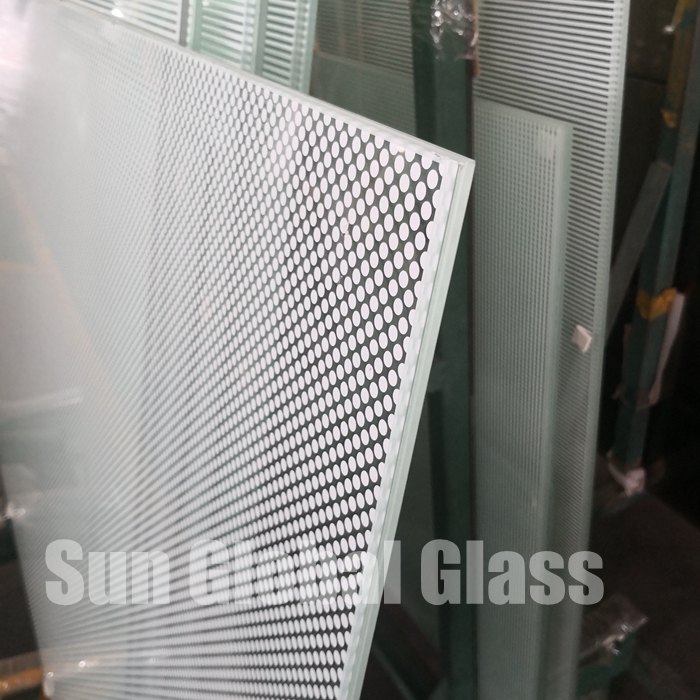

Laminated glass with dots printing


Laminated glass with dots printing


Laminated tempered glass features:

1.Tempered glass feature: after breakage, will break into small granular after breakage, will not harm human beings.



2. Laminated glass features: Due to PVB have strong bondness, laminated glass breakage will not fall down and stick by pvb film and .



3. Laminated glass with 50% dots silk screen printing design, can make light pass through and have good appearance.



4. This kind of design make glass have the function of anti slip effect.



5. UV rays resistance: Printing laminated glass reduces the penetration of UV rays and protect indoor objects from UV rays radiation.



Laminated glass with dots printing


Specification:



Glass: 9.52mm laminated glass with dots printing



Other glass: 11.52mm laminated glass with dots printing, 13.52mm laminated glass with dots printing, 17.52mm laminated glass with dots printing,21.52mm laminated glass with dots printing, 25.52mm laminated glass with dots printing, 31.52mm laminated glass with dots printing, 39.52mm laminated glass with dots printing etc



PVB thickness: 0.76mm laminated glass,1.14mm laminated glass,1.52mm laminated glass,1.9mm laminated glass etc



Max size: 3300x12000mm



Glass thickness: 4mm+4mm printed laminated glass,5mm+5mm printed laminated glass,6mm+6mm printed laminated glass,8mm+8mm printed laminated glass,10mm+10mm printed laminated glass, 12mm+12mm printed laminated glass etc



Glass color: clear laminated glass,extra clear laminated glass,green laminated glass,brown laminated glass,blue laminated glass,grey laminated glass,frosted laminated glass,ceramic printed laminated glass etc.

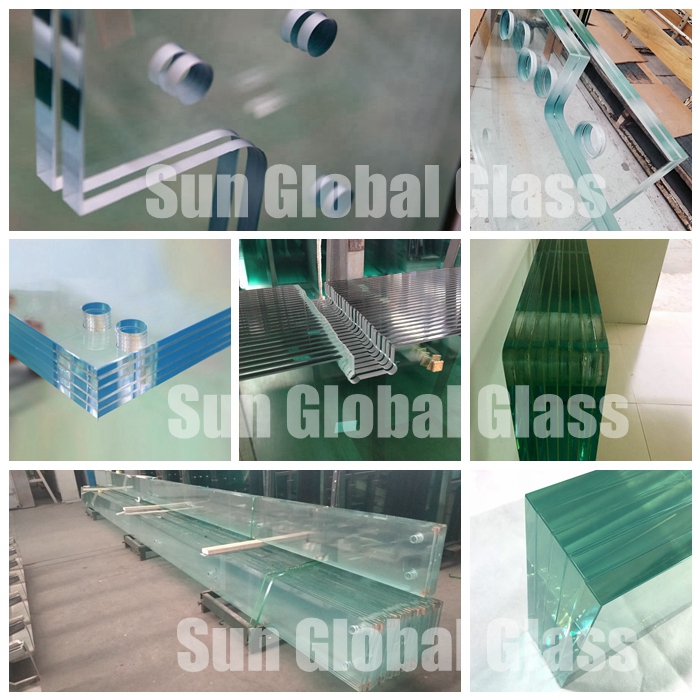

laminated glass process details



Applications:



9.52mm dots silk screen laminated glass have wide usage in modern construction, Mostly in following areas:



1. Glass railings, glass balustrade, glass fence etc.

2.Glass partition, glass partition wall, glass wall

3. Glass floor

4. Glass facade, glass curtain wall, glass exterior wall

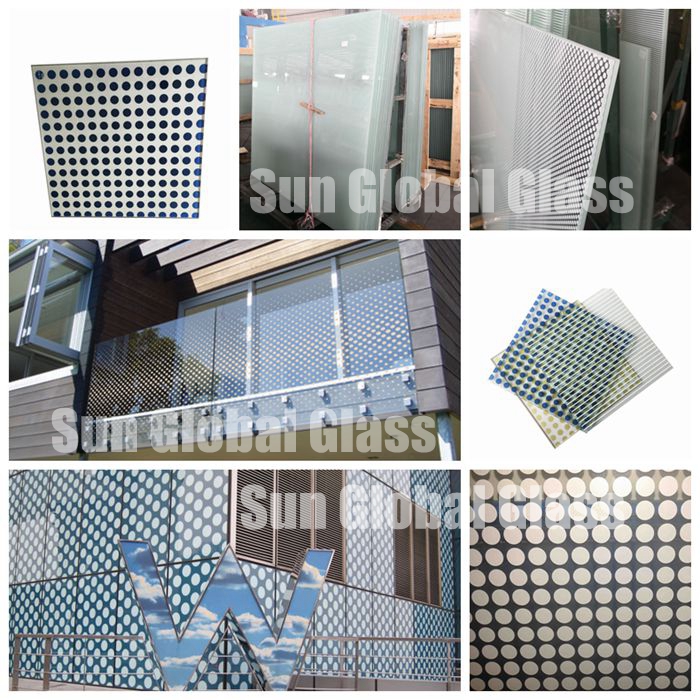

laminated printing glass application


Quality Certificates:



9.52mm laminated glass with 50% dots silk screen printing are produced strictly under ISO9001 Quality System and have passed following domestic and international quality standards:



1. 9.52mm laminated glass with 50% dots printing meet CCC(Chinese Safety Glass Compulsory Certification)



2. 9.52mm laminated glass with 50% dots printing meet China laminated glass standard GB9962.



3. 9.52mm laminated glass with 50% dots printing meet meet European safety glass standard EN14449:2005.



4. 9.52mm laminated glass with 50% dots printing meet American safety glass standard SGCC ANSI Z97.

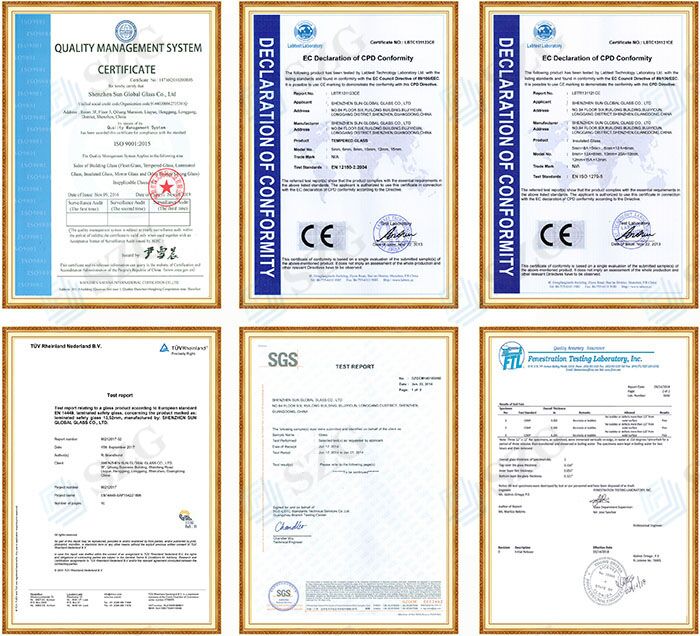

 glass certificate
