5mm+9A+5mm sound proof insulated glass,sound proof insulated glass panel,toughened  hollow glass price

5mm+9A+5mm sound proof insulated glass,sound proof insulated glass panel,toughened hollow glass price

  • Other name: Hollow glass, heat proof glass, sound insulation glass, double glazing/double glazed glass, insulating glass, insulation glass
  • Shape: flat insulated glass, curved insulated glass
  • Composition: glass+aluminum insulation spacer+glass
  • Single Glass Thickness: 5mm to 10mm
  • Insulated glass glue: butyl glue and sulfur glue
  • Spacer thickness: 6A 9A 12A 15A 20A
  • Package: strong exportation wood crates
  • Delivery: 10-15days after deposit payment received
  • Container: 20'GP, 20'OT, 40'HQ

SGG 5MM+9A+5MM CLEAR TEMPERED INSULATED GLASS- Perfect Glass Facade System materials


Insulating Glass is also called hollow glass,heat proof glass,sound insulation  glass, doublazing /double  glazed glass,which is made two or more pieces of glass and bonded with aluminum frame filled with efficiently hasten drying agent.and then it is secondary sealed with Silicone Sealant.

Insulated glass units for glass facades, commercial windows and residential homes ,insulated glass  can comprise all of our glass type and any combination of glass can be used.The function of air/gas spacer is reduce water vapor penetration.The insulated glass unit is sealed by a secondary edge seal and that make structural robustness to the insulated glass. The aluminum spacer contains a desiccant and can absorb humidity from or within the air space.


5MM clear tempered glass +9A+5MM clear tempered glass Specification:

Single Glass thickness 5mm clear tempered glass
 Spacer thickness 6A, 9A, 12A, 15A, 20A
 Gas in Spacer Air, Argon
 Glass thickness options 5mm/ 6mm/8mm/10mm/12mm, etc
 Other glass options  Low-E tempered glass, ultra clear glass,, tinted glass, reflective glass
Insulated glass size 1.Max: 2700x3700mm
2.Min:180x350mm
3.Custom sizes
Other Insulated glass composition options 1.Clear tempered glass+ Low e tempered glass
2.Clear tempered glass+Reflective tempered glass
3.Or customized composition based on requirements.


How effective is double glazing?
IGU(insulated glass units) can improved a lot to your home comfort level,combined with insulation in the walls, ceiling and floor,it will keep temperature stability and reduce heating and the cooling cost of appliance.

Double glazing a window with clear  float glass, you can halve the heat loss compared to single glazing  window if the size and shape.if you double glazing with low-e glass or using argon gas to fill the space between glass panel.

Features:

1.Energy saving:For the low heat conductibility of the sealed air between the glass, the insulated glass can reduce heat transfer from inside to outside. Therefore, it can save energy by 30%-50%.

2.Perfect transparency, IGU still allows max light transmittance.

3.Excellent Soundproof effect :Single glazing glass only reduce noise o 20-22dB. Insulated glass has a great performance in sound proof.can reduce noise to 29-31 even 45dB.


Applications:

Butyl glue insulated glass are used outside, and Sulfur glue insulated glass are used inside.

1.Outside usage:

  • curtain wall glass
  • Glass facade,etc

2.Inside usage:

  • Double glazing units window glass pane
  • Double glazing glass partition, etc.


SGG IG units Quality Standard:

1. comply with EN12150 European tempered glass standard
2. comply with ASTM1048 American Standard
3. conform with GB 9963-1998 Tempered Glass Standard
4. conform with GB 17981-1999 Chinese Standard Tempered and Heat-Strengthened Glass
5. Comply with Chinese Safety Glass Compulsory Certification (CCC), IGCC, CSI.


Product Details:

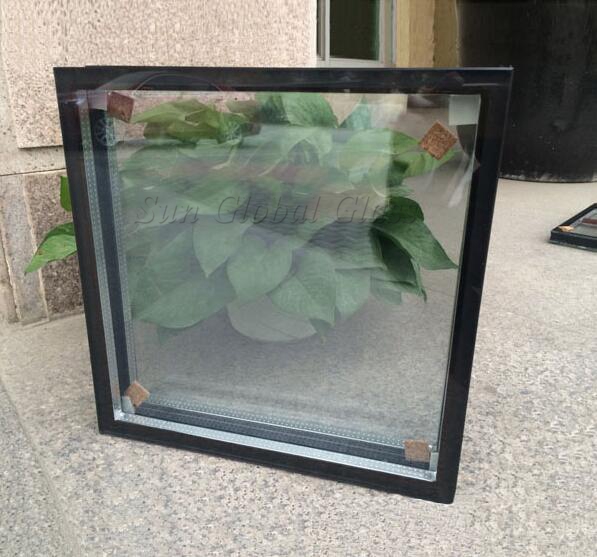

Product pictures of SGG 5MM+9A+5MM CLEAR TEMPERED INSULATED GLASS





Clear Toughened Double Glazing Units Production Line:




Our promise is that you receiving 5 9 5 Clear Toughened Insulating Glass Unit with high quality and safety condition from us.
