6mm tempered ford blue glass+12A+6mm tempered low e glass, 24mm ford blue  toughened double glazed glass, low e energy saving IGU6mm tempered ford blue glass+12A+6mm tempered low e glass, 24mm ford blue  toughened double glazed glass, low e energy saving IGU6mm tempered ford blue glass+12A+6mm tempered low e glass, 24mm ford blue  toughened double glazed glass, low e energy saving IGU

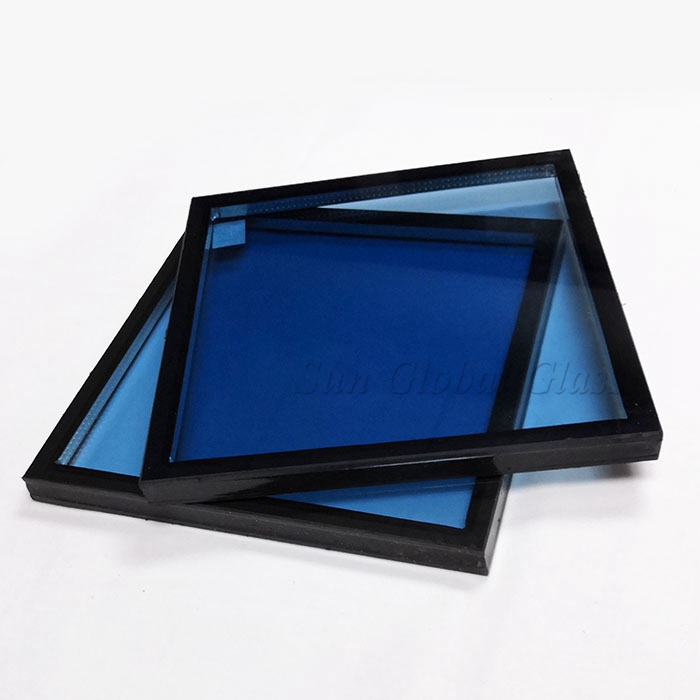

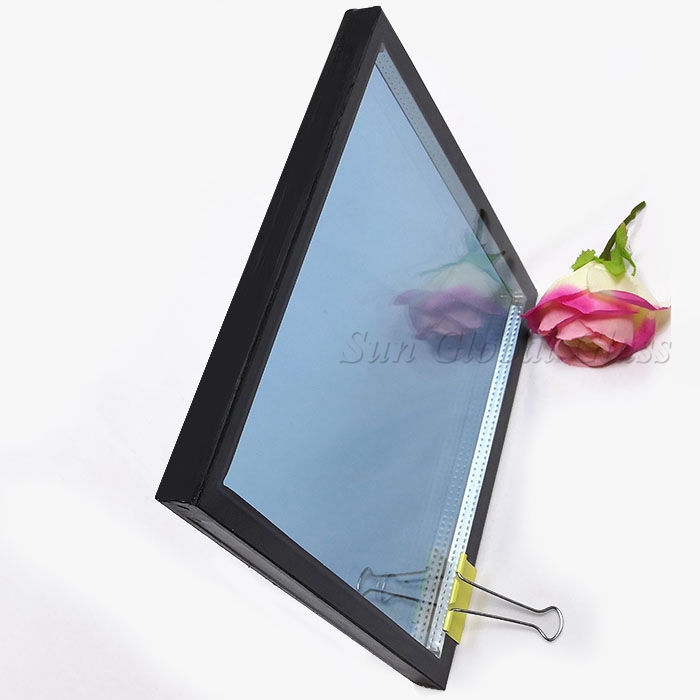

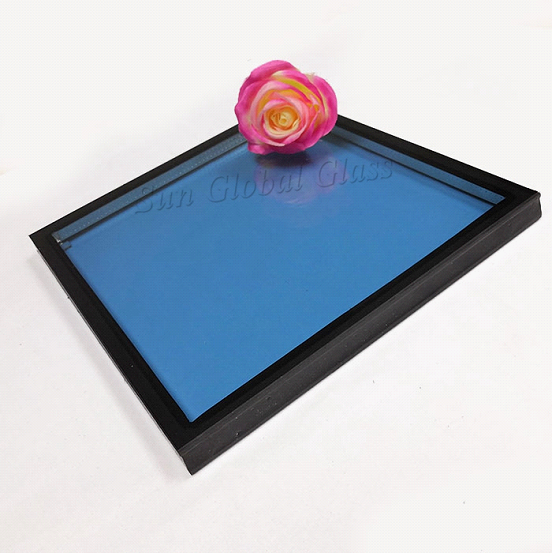

6mm tempered ford blue glass+12A+6mm tempered low e glass, 24mm ford blue toughened double glazed glass, low e energy saving IGU

  • Product name: Ford blue tempered insulated glass
  • Composition: 6mm tempered ford blue glass+12 air space+6mm tempered low e glass
  • Glass thickness: 24mm
  • Spacer gas: Air, argon
  • Shape: Flat & Curved
  • Size: max size is 3300mmx13000mm, customized size is welcome
  • Application: Curtain wall, window, railing etc


SZG 24mm Ford Blue Insulated Glass isproduce by using best quality float glass, the float glass is taken into thetempering furnace and heats it well above its transition temperature of 564 °Cto around 680 °C, the glass is then rapidly cooled with forced air drafts.Tempered process can make the glass 5 times harder than ordinary float glass.After tempered process, we take one piece of 6mm loe w tempered glass and onepiece of ford blue tempered glass sealed around the edges with an air spacebetween, to form a single unit.

Insulated glass also called IGU glass anddouble glazing glass, the glass sheets are separated by a "spacer",usually it is air spacer and argon spacer. As a warm edge, the spacer isseparates the two panes of glass in an insulating glass system, SZG use metaland fiber as raw material to produce spacer that make the glass moredurability.


SZG insulated glass



SZG insulated glass

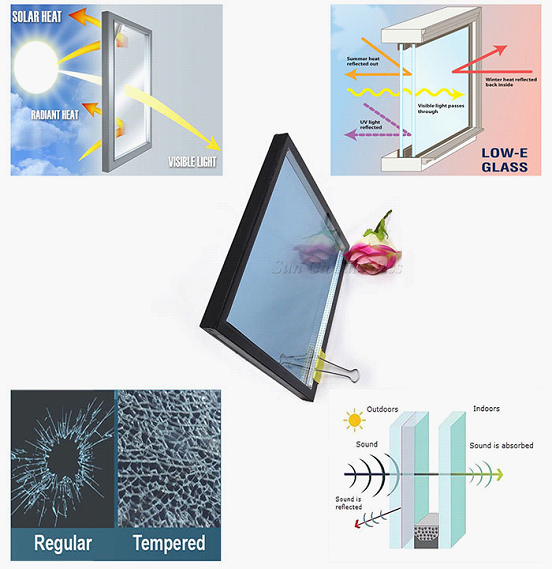

Characteristics of Double Glazing Glass


1.Tempered insulated glass is a safety glass, it is more stronger thanordinary glass, even it is broken, the glass will disintegrates into harmlesssmall fragments which are unlikely to cause injury.


2.Low e insulated glass is very good for heat insulation, it do notallow the inside air to go out or the outside heat to come in. Low E insulatedglass acts as a barrier to save energy. Also, in hot summer, the low e coatingcan reflective the sun back outdoor which keep the room at an appropriatetemperature.


3.Double glazing glass also provide a very good sound insulation inbetween the interiors and exteriors, it can be used for interior soundinsulation needs, such as commercial building partitions and uptown area.


4.Double glazed is much stronger than the single glazed that helpsdouble glazed building more secure, since the double layers of toughened glassis much harder for burglars to break.



SZG insulated glass

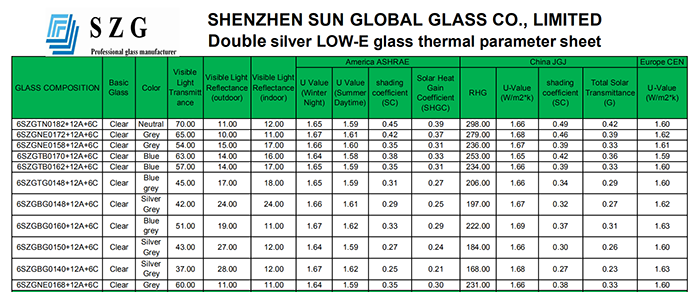

Performance Date for SZG Insulated Glass

SZG insulated glass

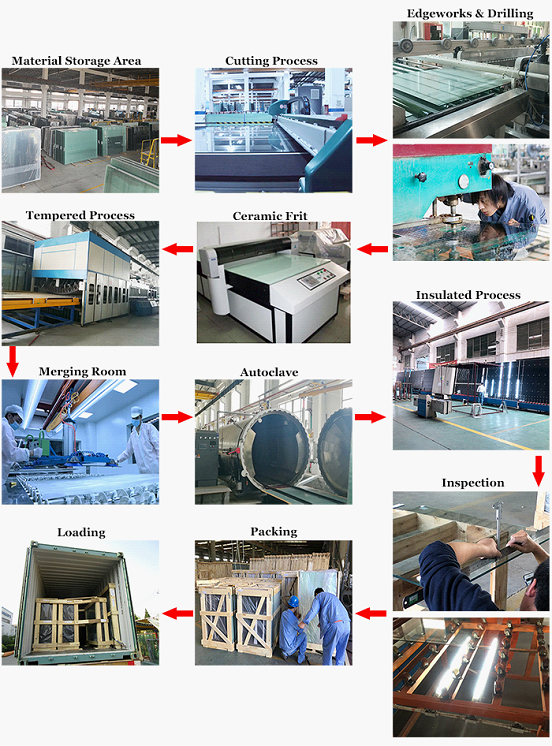

Insulated Glass Processing

1. Sun Global Glass process by use best quality float glass, eachsheet of float glass must be under the LED light to inspection and ensure thereare not exist air bubble, crack , scratch and other defects.


2. After inspection, the glass would be cut, and then washing anddrying. Washing machine should be worked in optimum capacity and then drycompletely.


3. Take the glass into tempering furnace, rapid cooling the glassafter high temperature heating, heat treatment mush according to CE standard.


4. Sealing glass with structural adhesive, the glass must be sealedtwice. Molecular sieves can absorb moisture from the air space, but not exposedto air for more than four hours, otherwise it will absorb moisture in the airand will not work. Therefor the molecular sieves should be run out within four hours.


SZG insulated glass

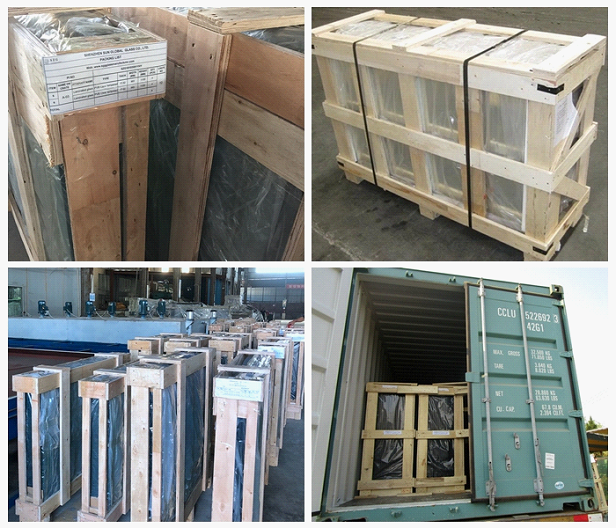

Packing and Loading



SZG insulated glass
